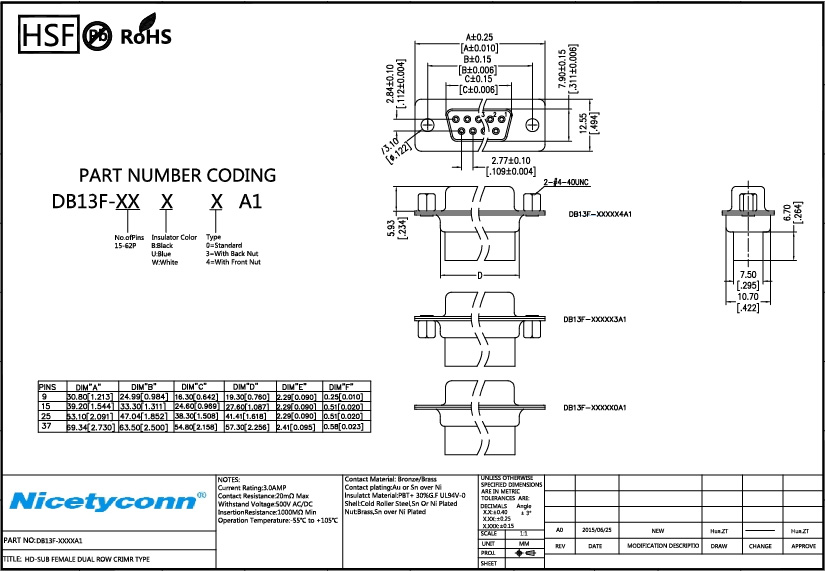

Female Dual Rows Crimp Type D-SUB |
|
Specification: |
|
Current Rating:3.0AMP |
|
Withstand Voltage:500V AC/DC |
|
Contact Resistance:20mΩ Max |
|
Insulation Resistance:1000MΩ Min |
|
Operation Temperature:-55oC to +105oC |
|
Contact Material: Bronze/Brass |
|
Contact Plating: Au or Sn over Ni |
|
Insulator Material: PBT+30%G.F (UL94V-0) |
|
Shell: Cold Rolled Steel, Sn or Ni Plated |
|
Nut: Brass, Sn over Ni Plated |
