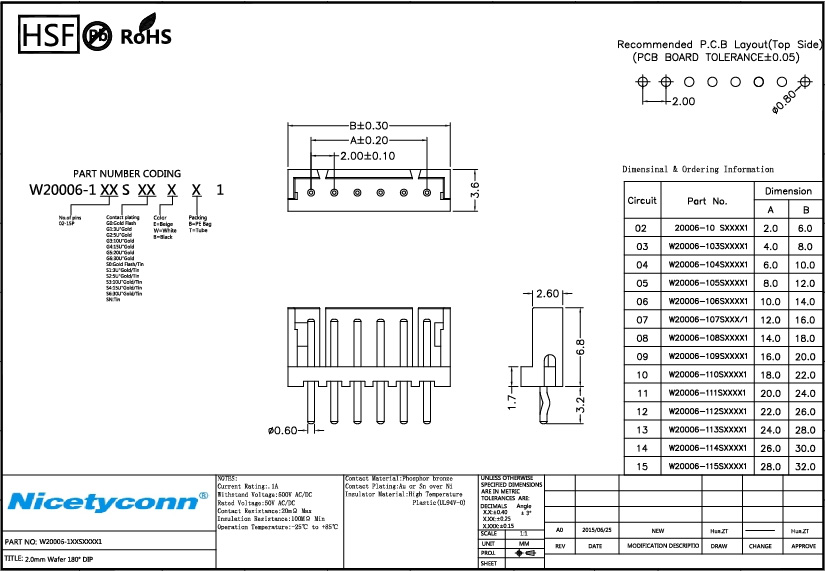

2.0 Pitch Straight Type Wafer Plug |
|
Specification: |
|
Current Rating: 1.0AMP |
|
Withstand Voltage: 500V AC/DC |
|
Rated Voltage: 250V AC/DC |
|
Contact Resistance: 20mΩ Max |
|
Insulation Resistance: 100MΩ Min |
|
Operation Temperature: -25oC to +85oC |
|
Insulation Material: High temperature plastic (UL94V-0) |
|
Contact Material: Phosphor bronze |
|
Contact Plating: Au or Sn over Ni |
